Quick Details

  • Steel Grade: Q195,Q235,45#,60# etc.
  • Standard: AISI, ASTM, BS, DIN, GB, JIS, EN10257,ASTM A 641
  • Wire Gauge: 0.15-8.0mm
  • Place of Origin: China (Mainland)
  • Type: Galvanized, round wire
  • Application: Fencing
  • Alloy Or Not: Non-alloy
  • Special Use: Free Cutting Steel
  • Model Number: Galvanized
  • Brand Name: Rayee
  • Product name1: electro/inmersion en caliente de alambre galvanizado
  • Product name2: steel wire for making mattress, mesh, spring, water pipe,PCCP wire
  • Function: cable/bailing/fence/agriculture/overhead/wire rope
  • Product name: zinc coated steel wire/carbon wire
  • Color: silvery
  • Zinc coating: 12~ 920G/M2
  • Tensile strength: 380Mpa-450 Mpa,600-800Mpa;over 1000Mpa
  • Elongation: over 10%

Packaging & Delivery

Packaging Details Z2,Z3,Coil,Plastic Roll,or wooden reel as the dimension of the reel is according to your requirement for Low and High Carbon Steel Wire/wire steel, steel wire for fencing/mesh, electro/inmersion en caliente de alambre galvanizado
Delivery Time 7-25days after order confirmation

Low and High Carbon Steel Wire/wire steel, steel wire for fencing/mesh, electro/inmersion en caliente de alambre galvanizado

Descriptions:

Zinc coated steel wire can be use for redrawing,they are widely used for manufacturing steel wire rope,cable,bailing pasture fence, armoring cable, fence,strand etc. Our products have excellent toughness and flexibility ,  thick galvanized layerstrong corrosion resistance and other properties .

High tensile galvanized steel wires are widely used for manufacturing overhead aluminum conductor and overhead steel conductor.The wire are smooth and round.The surface have not any flows,scratches,twists seams,splits.

The wire need to be drawn after galvanization;steel wires do not go through any heat treatment.

All steel wires strickly comform to ASTM B498-83.







1)Diameter: 0.15mm-8.0mm  2)Tensile Strength:  380Mpa-450 Mpa,600-800Mpa;over 1000Mpa   3)ASTM B 957 , ASTM A



1.Material:Wire rod :BP05,carbon steel 1006,1008,1018,Q195

2.Diameter: 0.15mm-8.0mm

3.Surface treatment:ELECTRO GALVANIZED,HOT DIPPED GALVANIZED

4.Zinc coating: 150G/M2 - 240G/M2

5.Packing:ROLL PACKING WITH PLASTIC SPOOL INSIDE, POLYWOVEN BAG OUTSIDE

STANDARD Z2 PACKING



Size (mm)

Coil Size

Spool Packing

Big Coil Packing

ID (mm)

OD (mm)

0.15-0.26

6 inch

1-14kg/spool





0.27-0.60

8 inch

1-100kg/spool





0.61-1.60

12/14/16 inch

1-100kg/spool

250-400

400-770

1.61-6.00



14-500kg/spool

450

800

508

840

6. Tensile Strength:

Size (mm)

Tensile Strength (mpa)

0.15-1.60

290-550

0.65-1.60

400-550

1.61-6.00

400-1200



7.Zinc coating:

Meet GB/T3082/ASTMA411 standard.

Size (mm)

Weight of Zinc-Coating ( g/m2 )

A

AB

B

C

D

E

F

A1

B2













≤0.25





30

20

18







>0.25-0.40







30

25

20





>0.40-0.50









30

20





>0.50-0.60









35

20





>0.60-0.80

120

110





40

20





>0.80-1.00

150

130





45

25





>1.00-1.20

180

150





50

25





>1.20-1.40

200

160





50

25





>1.40-1.60

220

180





50

35

30



>1.60-1.80

220

180





70

40

30



>1.80-2.20

230

200





80

50

40



>2.20-2.50

240

210





80

55

40



>2.50-3.00

250

230





90

70

45



>3.00-4.00

270

250





100

85

60

30

>4.00-5.20

290

270





110

95

70

40

>5.20-6.00

290

270

245



110

100

80

50



8.Application:

Galvanized wire is widely used in the industrial fields and the daily lives. It can be as the basic material of many meshes, like weld wire mesh, crimped wire mesh, diamond mesh, hexagonal wire netting, hardwire cloth, slope protect wire mesh, gabion box, filter screen, mine screen mesh, chain link fence, fence netting etc.

It also used in other fields like galvanized wire mesh fenceing for the protection of agricultural and commercial properties; used in various automotive components; communication equivaments; packaging products; manufacture of galvanized barbed wire; galvanized wire rope of low and high strength; used in medical components etc.

hot dipping galvanized steel wire  / Hot dipped galvanized iron wire



Hot dipped galvanized iron wire is made by Q195 low carbon steel wire . Main process is wire drawing , achid washing , rust removing , annealing , zinc coaing , coiling and packing . Mainly used in construction , handocraft , woven wire mesh , express way fencing mesh , packaging of products and other daily uses .



Specifications:



1 . Mateiral : Q195 Low Carbon Steel Wire

2 . Zinc coating : 40-230g/mm2

3 . Tensile strength : 430--470N

4 . Elongation : 10%

5 . Coil weight : 100kg 500kg



Features :



1. Excellent flexibility and softness



2. Suitable usage : Net making , winding , baling , hanging and so on .

Contact information:

Any inquiries,pls feel free to contact us

Email:rayee2010(at)rayee.com.cn

Skype:rayee2010
Tel: 86-25-85399268/58071170
Pls feel free to contact us


Raw material

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Q195 wire rod---this type of wire rod has less impurities so it  very suit for drawing. Q195 material's chemical component is nearly same as SAE1008 and SAE 1006. Q195 material chemical component :



C≤0.07; S≤0.023; Si≤0.09; Mn≤0.32; P≤0.025.







Galvanized wire production process

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

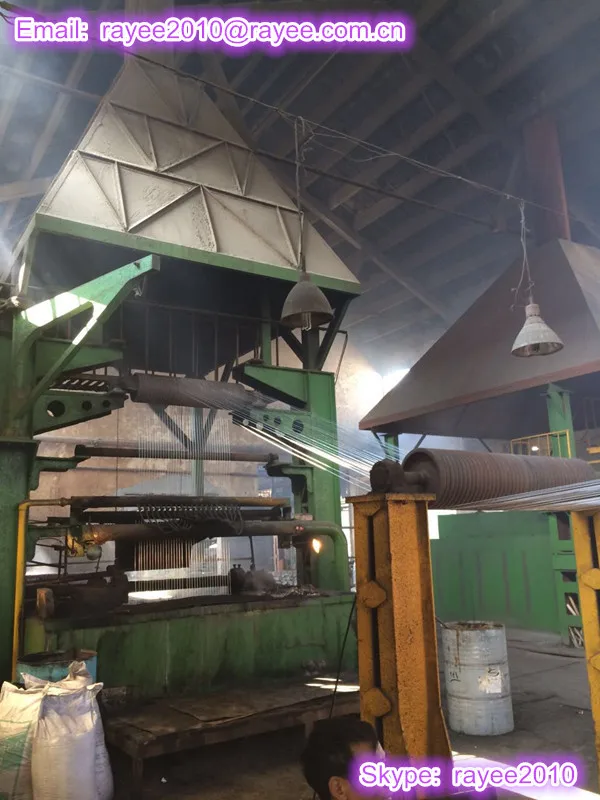

1 . Galvanized wire’s first stage is drawing



there are two kinds of drawing machine: powder drawing and water drawing. powder drawing is fit for junior drawing(6.5mm~4.0mm). One powder drawing machine has 4 tanks and 4 molds. One tank is matched with a mold. Each of them are offered energy by a electromotor. 0.9mm(max)can be “eat” when the wire cross a mold. There are no loss of weight during drawing.

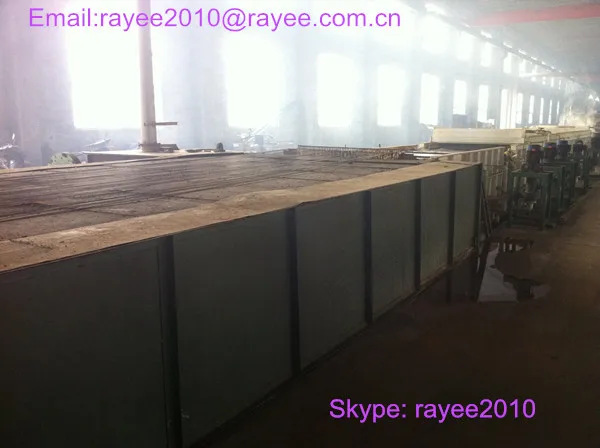

2 . Galvanized wire’s second stage is annealed



Anneal is to low the tensile strength of wire . The stove is solid . The architecture of anneal stove is cuboid . Different thickness of wire require different temperature . Range is from 700℃to 900℃ . Output of the anneal stove , the tensile strength is 400N~500N .



3 . Galvanized wire’s third stage is chlorhydric acid washing



After the draw and anneal, the wire is thinner, softer but also much more dirty. It needs chlorhydric acid washing to remove the impurities. Chlorhydric acid washing requires water pool and chlorhydric acid pool. The density of chlorhydric acid is 17%. In the Chlorhydric acid pool, there is a caldron used for the emission of vapor.

Electro galvanized is a chemical reaction. One chlorhydric acid pool is enough. However, hot-dipped is a physical reaction, it needs two chlorhydric acid pool and two water pool for the preparation of galvanization.





Rust removing:

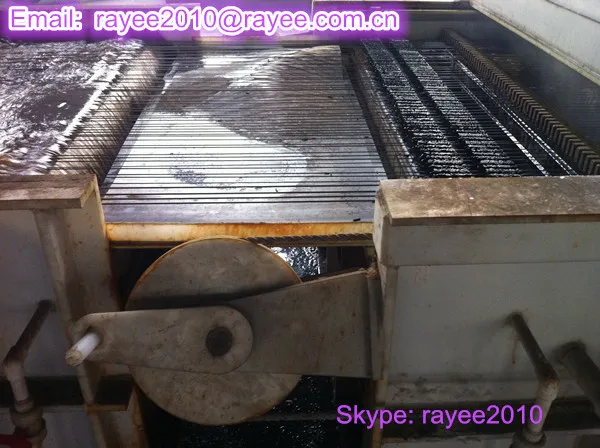

4 . Galvanized wire’s fourth stage: Zinc coating



After the chlorhydric acid pool, water pool is also necessary. In the zinc pool, displacement reaction is chemical and uniformly distributed. The surface of wire is smooth. Because wire cross the zinc pool fast, abundant zinc coating requires 4 zinc pools.

Before hot dipped,the wire must be dry.

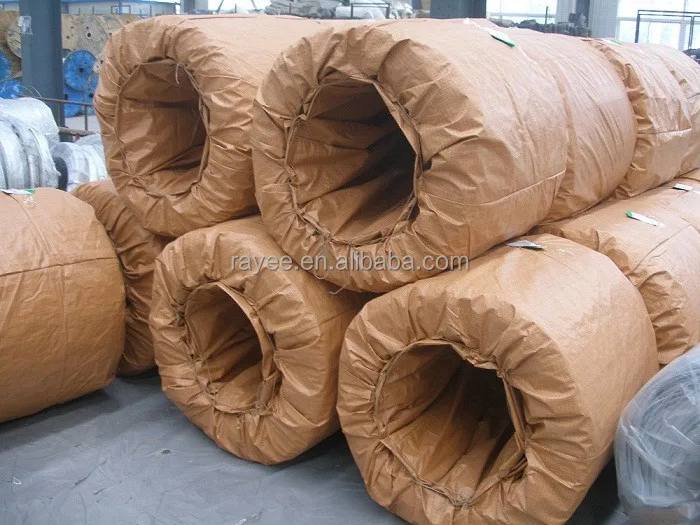

Packing :

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Inside plastic film , outside weaving bag . Coil weight : 100kg , 500kg,800kgs



Welcome to inquiry !



Contact information:

Any inquiries,pls feel free to contact us

Email:rayee2010(at)rayee.com.cn

Skype:rayee2010
Tel: 86-25-85399268/58071170
Pls feel free to contact us
